Powered by advanced phased array sound emission technology, this solution intelligently monitors and optimizes audio performance in real time to reduce noise interference and enhance sound clarity. It creates a more balanced and controlled acoustic environment, effectively minimizing noise pollution while maintaining campus-wide acoustic harmony.
Dynamic Sound Field Control: Delivers precise and targeted audio coverage for outdoor and playground environments, ensuring clear and consistent sound performance across wide areas.

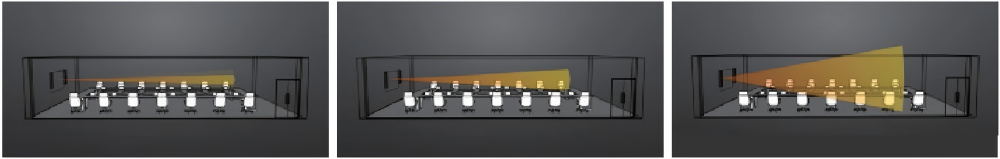

Phased-array Beamforming Schematic Diagram
Intelligent Noise Reduction and Anti-Interference: The real-time dynamic sound field intelligently controls audio distribution to minimize interference in teaching spaces and nearby residential areas, creating a quieter and more harmonious acoustic environment.

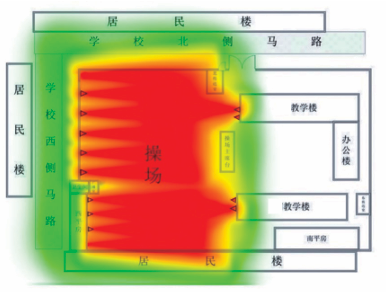

Sound coverage effect for teaching areas and residential areas
Full-Scenario Adaptability: Designed to support diverse applications, the system seamlessly adapts to outdoor and playground physical education activities, as well as large-scale event sound reinforcement, delivering clear and reliable audio performance across every scenario.

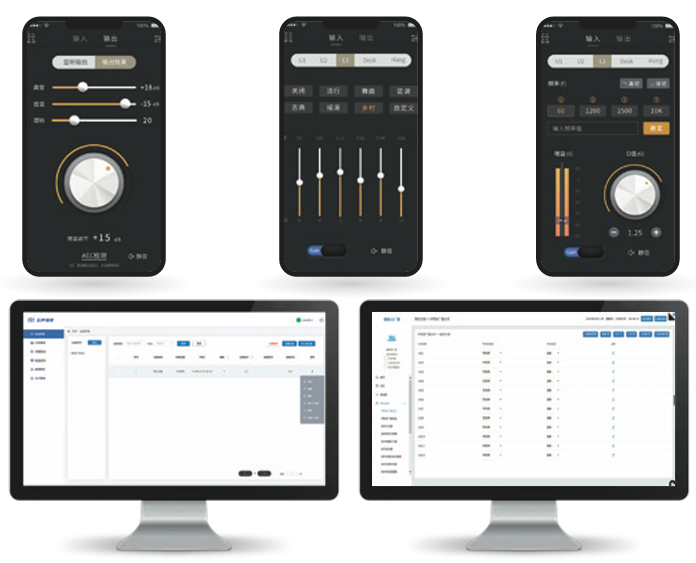

Integrated Intelligent Management Platform: Supports remote control, real-time monitoring, and flexible zone management for smarter audio operations. Advanced digital audio processing ensures clear and natural sound reproduction while enabling seamless integration with existing public address systems.

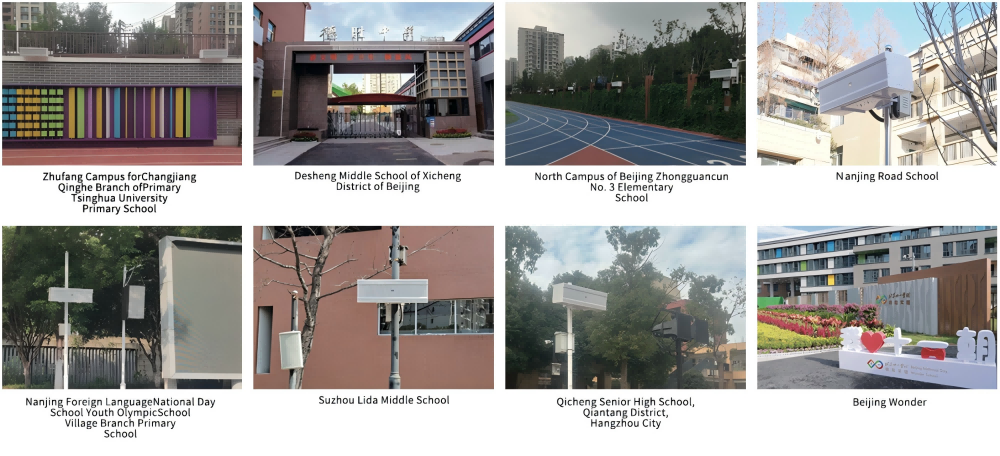

Success Cases
Hardware Parameters
| Power Supply | DC 24V/ 12A |
| Maximum Sound Pressure Level (SPL) | 115 dB SPL, @ 1 kHz/ 1 m |
| Frequency Response | 100 Hz – 18 kHz |
| Sensitivity | 96 dB |
| Total Harmonic Distortion (THD) | 0.00% |
| Gain Control Range | -20 dB to +20 dB |
| Rated Power Output | 250 W |
| Maximum Power Output | 400 W |
| Mounting Options | Wall-mount/ Stand-mount |
| Protection Features | Power-on surge suppression, overload protection, short-circuit protection |
| Dimensions(W × D × H) | 320 mm × 98 mm × 320 mm |
Technical Specifications
| Directional Technology | Employs an intelligent speaker array system based on beamforming algorithms, combined with phased array technology. It utilizes digital control of 8 speaker units to achieve dynamic focusing and precise coverage of the sound field. |
| Desktop Mixing Control | The device supports connection to a simple desktop mixing console, enabling the call-up of presets, volume adjustment, and on/off control. |
| Embedded Speaker Array Design | Each speaker unit in the array supports independent control. Via a dedicated control system, fine-grained parameter adjustments can be made for individual units, including gain adjustment for output volume (continuously adjustable within ±20dB), delay adjustment based on acoustic distance, and independent on/off control. |
| Front-Back Sound Pressure Level (SPL) Difference (Directivity) | Full Frequency Range: Average SPL Difference ≥ 22dB 125Hz – 250Hz Band: SPL Difference ≥ 18dB◦ 250Hz – 500Hz Band: SPL Difference ≥ 20dB◦ 500Hz – 1kHz Band: SPL Difference ≥ 22dB◦ 1kHz – 18kHz Band: SPL Difference ≥ 25dB |
| Horizontal Directivity Adjustment | Adjustable Angle Range: ≥ ±45° (Total coverage angle ≥ 90°), enabling wide-angle coverage and precise steering in the horizontal plane. |
| Adjustment Precision: Horizontal steering precision reaches ±10°, supporting positioning at any angle within a 0-180° range to ensure flexible sound field alignment according to the environment. | |
| Compressor/Limiter (ALC) | Supports Auto Level Control with configurable parameters such as threshold, compression ratio, and knee, effectively controlling signal levels and preventing distortion. |
| Automatic Gain Control (AGC) | Automatically adjusts microphone gain based on speaking distance to maintain stable output volume. |
